PE Coated / Ripple Paper Cup Making Machine 4.7kw Paper Cup Sleeve Machine

Name: PE Coated Ripple Paper Cup Making Machine 47kw Paper Cup Sleeve Machine
Brand: LangO
Price: 1 USD

Brand Name : LangO

Model Number : TM-35

Certification : CE ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Delivery Time : 15-30days

Name : Paper Cup Sleeve Machine

Model : TM-35

Paper Cup Size : 8 - 20oz or customize

Raw Material : PE coated paper, ripple paper, paper card, grey paper board, etc.

General power : 4.7kw

Air Source : 0.6MPA

Contact Now

Paper Cup Sleeve Machine

Name	Paper Cup Sleeve Machine
HS Code	8441309000
Model	TM-35
Same Cup Bottom& Same Cup Angle	(half set mold)
Different Cup Bottom, Or Different Cup Angle	(whole set mold)
Paper Cup Size	8-20oz or customize
Raw Material	PE coated paper, ripple paper, paper card, grey paper board, etc.
Speed	40-50pcs/min
Speed	Speed of 20 hours stable running per day
Voltage supply	220v50hz single phase/ 380v50hz 3-phase (better to use 380v50hz 3-phase) *If user’s voltage supply is different, please inform us in advance.
General power	4.7kw
Air Source	0.6MPA
Net weight	1500kgs
Measurement	21509501650mm
Cup Side Sealing	EVERGREEN Ultrasonic sealing
Bottom Knurling	Heater Knurling
We can customize machine and mold according to customer’s requirement.

PE Coated / Ripple Paper Cup Making Machine 4.7kw Paper Cup Sleeve Machine

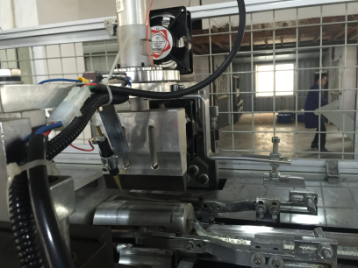

TM-35 Paper Cup Sleeve Machine with Safety Fence

Description:
TM-35 paper cup sleeve forming machine is the automatic machine through the procedure of automatic paper feeding, sealing, gluing, closing by one time to let the cup have the double layer or ripple layer to avoid heat.

Advantages:
A. Easy to operate the machine , only need one worker to operate the machine.

B. Good quality metal and steel used for the machine body and machine cover.

PE Coated / Ripple Paper Cup Making Machine 4.7kw Paper Cup Sleeve Machine

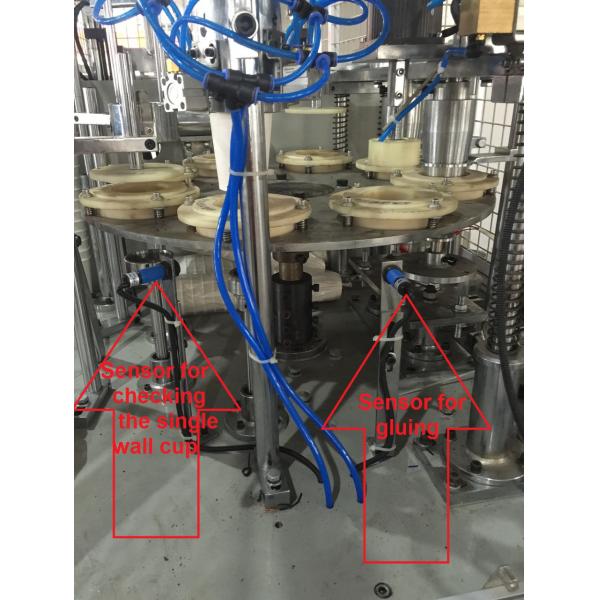

C. Automatic alarm and stop, adopt 4 sensors detecting the production.
